一、简介

2025年11月3日，攻击者利用 balancer 池不变式计算中的算术精度损失，在不到 30 分钟的时间内，从六个区块链网络中窃取了 1.28 亿美元。 我对这个攻击非常感兴趣，但是现有的网上的文章大多在描述极其有限的技术细节，例如 _upscaleArray 相关逻辑的精度丢失又或者是相邻一两层的调用链，对于尚未了解过 balancer 具体细节的读者不太友好。因此想好好整理一下全部相关细节并趁机学习一下 balancer 协议。

二、Balancer Internal

一句话：Balancer 是以 自动做市商（AMM） 为核心的一个 DeFi 流动性池框架。是不是感觉说了和没说没什么两样，别担心，我们一步步来理解。

1. 什么是 AMM

什么是自动做市商 AMM？我们先了解一下什么是做市商，做市商 Market Maker 是一个用于提供流动性的角色。例如在股票交易中，如果某个标的的买价 bid 和卖价 ask 之间相差巨大，那么这不利于用户进行买卖，因为差价较大会导致交易不到合适的价格进而造成额外的资金损失。而做市商就会通过在订单簿中高频挂单提供流动性，来减少买卖价格的差距。如果你玩过美股期权，那你就尤为能体会到这一点，因为期权的特殊性，其流动性会比较糟糕，因此大部分买卖池里的流动性都是做市商提供的。

而对于加密货币来说，货币转换也会遇到类似的问题。如果用户希望能大额买卖自己的代币，那么需要找到一个能吃下自己所有交易的地方。熟为人知的 Uniswap-V2 就是一个比较经典的地方，它这里持有了大量的 TokenA/TokenB 代币对，并且通过维持 x * y = k 不变量来计算代币兑换价格。例如假如 Uniswap 的 k = 20,000，且当前持有了 1000 USDC 和 20 ETH，则 ETH/USDC 兑换价格为 50。而如果 Uniswap 里持有的代币数量变成了 2000 USDC 和 10 ETH （注意k不变），则 ETH/USDC 兑换价格就变成了 200。你可以看到像 Uniswap 这种交易场所，其交易价格会随着数学公式的计算来自动变换，因此是自动的做市商。自动做市商就是既能自动根据市场情况来变幻价格，又能为用户提供充足的代币流动性来满足交易需求的一个角色。

2. Balancer 组件

Balancer-v2 文档里描述了 Balancer 主要由两部分组成：Vault 和 Pools。Vault 和 Pools 是一对多的关系，因此如果用户涉及到多个代币之间的交易操作，则只需要在 Vault 里变动记帐即可，减少重复的转账，降低 gas 费用。

Vault

Vault（pkg/vault/contracts/Vault.sol） 是 Balancer 的核心，它持有和管理每个 Balancer 池中的所有代币，也是大多数 Balancer 操作（swaps / joins / exits）的入口。但是需要注意的是 Vault 持有代币和记账，但是它不进行具体的资金管理（例如维护 AMM 不变量等逻辑就不在 vault 里做），这部分逻辑则在 Pools 里进行。

Pools

Balancer 里有很多种不同类型的 pool，这里简单介绍几种比较简单或常用的：

• Linear Pool：其使用已知且稳定的汇率，让基础资产与其包装后的收益代币进行兑换。例如，在 Aave 中，稳定币 DAI 与将其存入 Aave 后所获得的、代表存款并持续累积利息的 aDAI 之间，就可以通过 Linear Pool 实现高效互换。
• Weight Pool: 对 Uniswap V1 所推广的经典恒定乘积做市模型（x · y = k）的扩展版本。

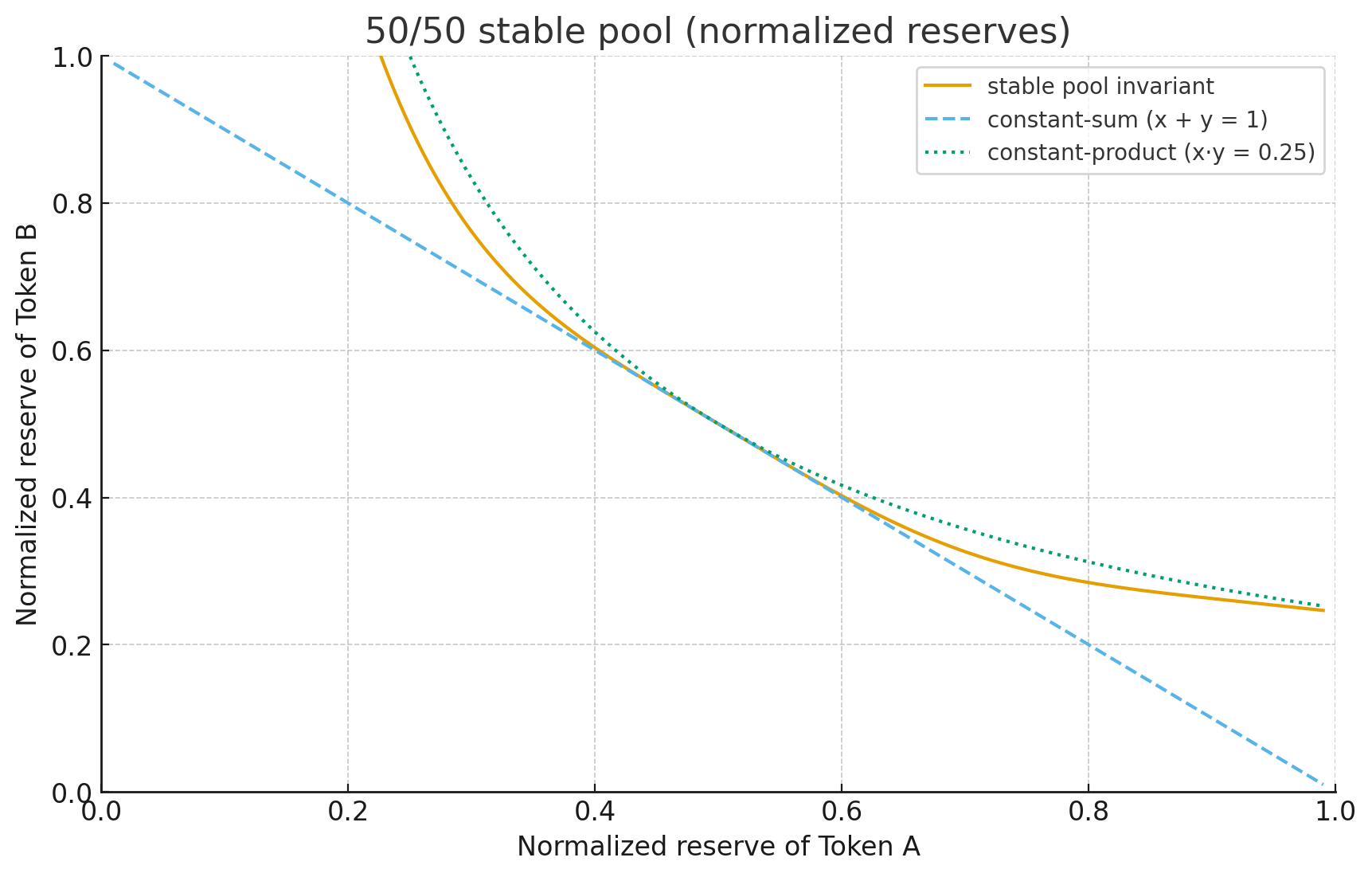

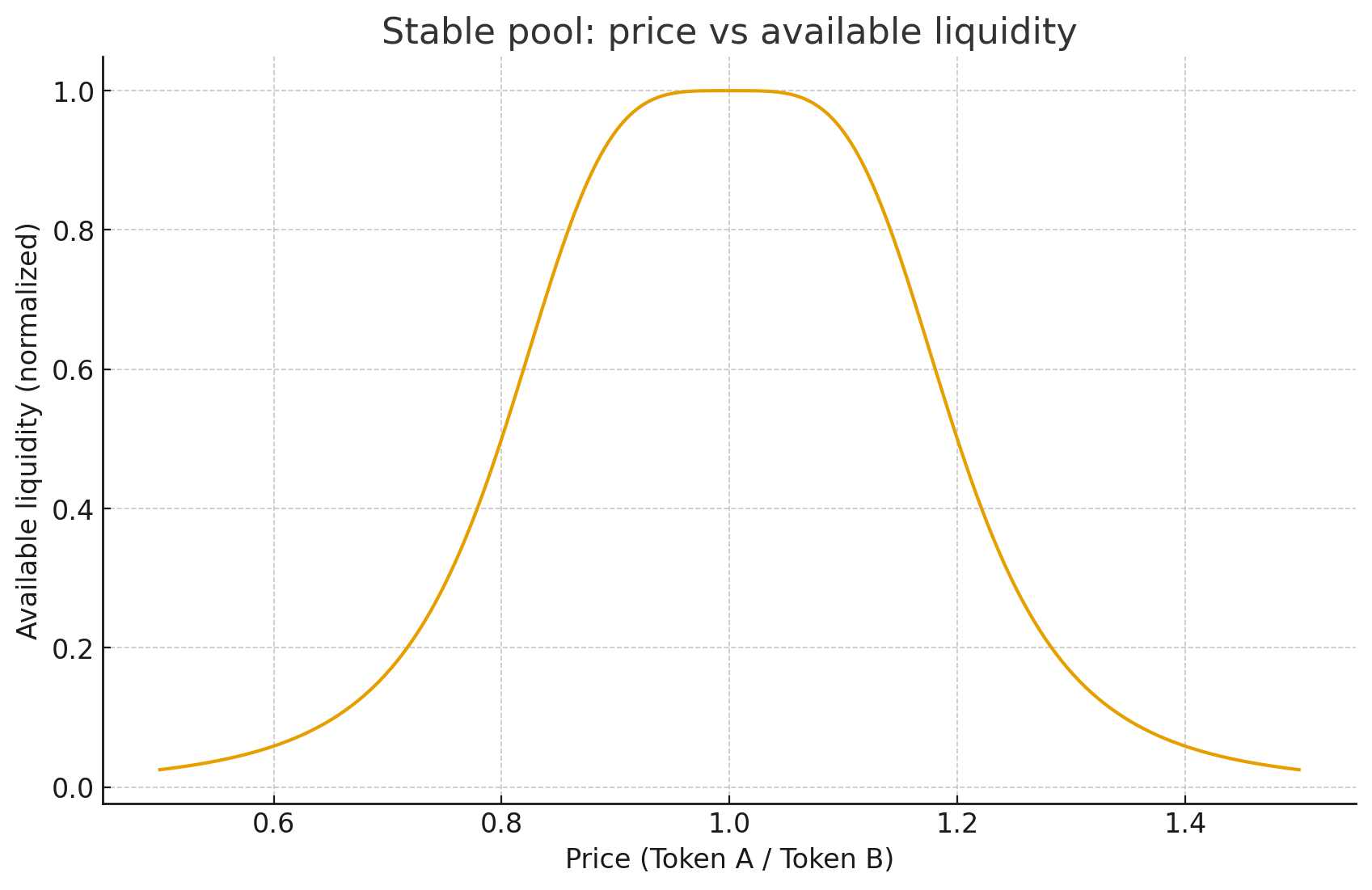

• Composable Stable Pools: 面向一组价值高度相关、预期能以近 1:1 或通过已知汇率实现稳定兑换的资产所设计的流动性池。例如 USDC、USDT、DAI 等稳定币之间的交易，它们的价格波动极小，因此非常适合用低滑点的稳定性曲线进行撮合。

对于 Composable Stable Pools，需要注意的是：

1. 这类场景与 Linear Pool 的目标并不同：Composable Stable Pool 处理的是“多个相互等价的稳定资产”之间的兑换，而 Linear Pool 处理的是“基础资产与其收益代币”之间的兑换，两者的数学结构和应用场景均有显著差异。
2. Composable 表示该池的 BPT（Balancer Pool Token，即流动性提供者在向池中存入资产后所收到的 ERC20 份额证明）本身可以作为一种可组合的资产参与其它池子的构建，也就是说池子的 LP 代币能够像普通代币一样被继续嵌套进更高层级的池，从而使不同池子之间能够自由组合、互相引用，并共同形成更大规模、更高资本效率的流动性结构。虽然 Linear Pool 也会将自身的 BPT 注册到 Vault 中，但这些 BPT 可能并不会被当作可组合资产用于构建其他 Pool。

3. Balancer 交互流程

这里我们以 Vault + Composable Stable Pools 组合为例来介绍一下 Balancer 的一些交互流程。

创建 Composable Stable Pools 合约

我们先来看看当创建一个 pool 时，vault 和 pool 之间会有什么样的交互流程以及涉及到的状态变量：

1. 若想创建一个新的 Composable Stable Pool 时，用户可以自由调用 ComposableStablePoolFactory (pkg/pool-stable/contracts/ComposableStablePoolFactory.sol) 合约的 create 函数来创建出新的 ComposableStablePool 合约。

2. ComposableStablePool 的 constructor 接下来则会自动调用 vault.registerPool 和 vault.registerTokens 将本 pool 以及相关 token 注册进 vault 中。需要注意的是这里的相关 token 除了注册时指定的底层资产以外，还会包含 pool 地址本身（因为 pool 本身就是它自己的 BPT）。

   // pkg/pool-stable/contracts/ComposableStablePool.sol
   constructor(NewPoolParams memory params)
       BasePool(
           params.vault,
           IVault.PoolSpecialization.GENERAL,
           params.name,
           params.symbol,
           _insertSorted(params.tokens, IERC20(this)), // <------
           new address[](params.tokens.length + 1), // <------
           params.swapFeePercentage,
           params.pauseWindowDuration,
           params.bufferPeriodDuration,
           params.owner
       )
       StablePoolAmplification(params.amplificationParameter)
       ComposableStablePoolStorage(_extractStorageParams(params))
       ComposableStablePoolRates(_extractRatesParams(params))
       ProtocolFeeCache(
           params.protocolFeeProvider,
           ProviderFeeIDs({ swap: ProtocolFeeType.SWAP, yield: ProtocolFeeType.YIELD, aum: ProtocolFeeType.AUM })
       )
   {
       _version = params.version;
   }

   // pkg/pool-utils/contracts/lib/PoolRegistrationLib.sol
   function _registerPool(
       IVault vault,
       IVault.PoolSpecialization specialization,
       IERC20[] memory tokens,
       address[] memory assetManagers
   ) private returns (bytes32) {
       bytes32 poolId = vault.registerPool(specialization);

       // We don't need to check that tokens and assetManagers have the same length, since the Vault already performs
       // that check.
       vault.registerTokens(poolId, tokens, assetManagers);

       return poolId;
   }

   这里提一嘴这个 PoolSpecialization，它决定了 Vault 在调用 pool 进行 swap 时所采用的 callback 接口形式，从而影响池子的 gas 成本与可支持的功能范围：

   • General 类型最灵活，适用于需要访问全部 token 余额和复杂数学逻辑的池。
   • Minimal Swap Info 则在保证功能性的同时减少回调数据量，常用于 Weight Pool 这类不需要全面状态的 AMM。
   • Two Token 则进一步将池子限制为仅包含两个资产，以换取最低的 swap gas 成本。

   不同类型的池根据自身 invariant 的计算需求和预期的 swap 复杂度，会选择适合的 specialization 来平衡功能与性能。每个 pool 在 constructor 时就会写死 PoolSpecialization 参数，在 ComposableStablePool 中 PoolSpecialization 就被设置为 GENERAL。

3. Vault 这边在收到 General Pool 的函数调用时会做一些计算和状态更新。一个是在 registerPool 函数中 vault 会为这个 pool 计算一个独一无二的 pool ID 并存入 _isPoolRegistered 变量中：

   // pkg/vault/contracts/PoolRegistry.sol
   function registerPool(PoolSpecialization specialization)
       external
       override
       nonReentrant
       whenNotPaused
       returns (bytes32)
   {
       // Each Pool is assigned a unique ID based on an incrementing nonce. This assumes there will never be more than
       // 2**80 Pools, and the nonce will not overflow.

       bytes32 poolId = _toPoolId(msg.sender, specialization, uint80(_nextPoolNonce));

       _require(!_isPoolRegistered[poolId], Errors.INVALID_POOL_ID); // Should never happen as Pool IDs are unique.
       _isPoolRegistered[poolId] = true;

       _nextPoolNonce += 1;

       // Note that msg.sender is the pool's contract
       emit PoolRegistered(poolId, msg.sender, specialization);
       return poolId;
   }

   另一个是在 registerTokens 函数中分别设置 _poolAssetManagers 和 _generalPoolsBalances。这俩函数都是用 <poolId, token> 来作为 key 去存数据，前者表示能够操纵 Pool 内某 token 的存入/提取/设置余额的管理员地址，后者表示 Pool 内某 token 在 vault 这边的余额状态。因此可以在这里看到确实是 vault 来保存 Pool 里存放的各个 token 的数量情况，这也便于 swap 交换。

   // pkg/vault/contracts/PoolTokens.sol
   function registerTokens(
       bytes32 poolId,
       IERC20[] memory tokens,
       address[] memory assetManagers
   ) external override nonReentrant whenNotPaused onlyPool(poolId) {
       InputHelpers.ensureInputLengthMatch(tokens.length, assetManagers.length);

       // Validates token addresses and assigns Asset Managers
       for (uint256 i = 0; i < tokens.length; ++i) {
           IERC20 token = tokens[i];
           _require(token != IERC20(0), Errors.INVALID_TOKEN);

           _poolAssetManagers[poolId][token] = assetManagers[i];
       }

       PoolSpecialization specialization = _getPoolSpecialization(poolId);
       if (specialization == PoolSpecialization.TWO_TOKEN) {
           _require(tokens.length == 2, Errors.TOKENS_LENGTH_MUST_BE_2);
           _registerTwoTokenPoolTokens(poolId, tokens[0], tokens[1]);
       } else if (specialization == PoolSpecialization.MINIMAL_SWAP_INFO) {
           _registerMinimalSwapInfoPoolTokens(poolId, tokens);
       } else {
           // PoolSpecialization.GENERAL
           _registerGeneralPoolTokens(poolId, tokens); // <-------
       }

       emit TokensRegistered(poolId, tokens, assetManagers);
   }

   // pkg/vault/contracts/balances/GeneralPoolsBalance.sol
   function _registerGeneralPoolTokens(bytes32 poolId, IERC20[] memory tokens) internal {
       EnumerableMap.IERC20ToBytes32Map storage poolBalances = _generalPoolsBalances[poolId];

       for (uint256 i = 0; i < tokens.length; ++i) {
           // EnumerableMaps require an explicit initial value when creating a key-value pair: we use zero, the same
           // value that is found in uninitialized storage, which corresponds to an empty balance.
           bool added = poolBalances.set(tokens[i], 0);
           _require(added, Errors.TOKEN_ALREADY_REGISTERED);
       }
   }

   说到这里就不得不提 Pool Balances 在 vault 里的数据保存形式。_generalPoolsBalances 里为每个 pool 在某个 token 上保存的余额信息是以 bytes32 来表示，其中包含了三个字段：

   • cash 112bits，表示该 Pool 当前存放在 Vault 内的代币数量
   • managed 112bits，表示由 Pool 的 Asset Manager 从 Vault 中提走并在外部托管的代币数量
   • lastChangeBlock 32bits，表示上一次余额变动时的区块号，防止三明治攻击用的

   这个设计的核心目的是在保持 AMM 正常运作的同时，让流动性能够获得更高的收益。在早期的 Uniswap 模型中，为了维持 x·y = k，不得不把绝大部分流动性都锁在合约内部，从而无法进行任何外部投资，也就不能产生额外收益。而 Balancer 的架构允许通过 Asset Manager 将部分资金从 Vault 中划出，用于借贷、投资或执行其他收益策略。这样 Pool 的总余额依然等于 total = cash + managed，但其中的 managed 部分能够被灵活利用来赚取额外收益；只有当发生 swap、join 或 exit 等事件时，才会更新存放在 Vault 内的 cash 数量。这样既保证了 AMM 的可用性，又提高了整体资金效率。

注入流动性

当 Liquidity Provider (LP) 想为 Pool 添加流动性时，LP 可以通过调用 vault 上的 joinPool 函数来注资。vault.joinPool 函数会调用具体的 pool 的 onJoinPool 函数（退出流动性则分别调用 vault.exitPool 和 pool.onExitPool 函数）。以下是 onJoinPool / onExitPool 函数的代码，可以看出来这俩是会被所有类型的 Pool 给继承，具体不同类型的 Pool 则分别实现不同的 _onInitializePool / _onJoinPool / _onExitPool 此类 hook 函数来计算资金流入流出的数额，但 BPT 的铸造和销毁是在这里：

// pkg/pool-utils/contracts/BasePool.sol
/**
 * @notice Vault hook for adding liquidity to a pool (including the first time, "initializing" the pool).
 * @dev This function can only be called from the Vault, from `joinPool`.
 */
function onJoinPool(
    bytes32 poolId,
    address sender,
    address recipient,
    uint256[] memory balances,
    uint256 lastChangeBlock,
    uint256 protocolSwapFeePercentage,
    bytes memory userData
) external override onlyVault(poolId) returns (uint256[] memory, uint256[] memory) {
    _beforeSwapJoinExit();

    uint256[] memory scalingFactors = _scalingFactors();

    if (totalSupply() == 0) {
        (uint256 bptAmountOut, uint256[] memory amountsIn) = _onInitializePool(
            poolId,
            sender,
            recipient,
            scalingFactors,
            userData
        );

        // On initialization, we lock _getMinimumBpt() by minting it for the zero address. This BPT acts as a
        // minimum as it will never be burned, which reduces potential issues with rounding, and also prevents the
        // Pool from ever being fully drained.
        _require(bptAmountOut >= _getMinimumBpt(), Errors.MINIMUM_BPT);
        _mintPoolTokens(address(0), _getMinimumBpt());
        _mintPoolTokens(recipient, bptAmountOut - _getMinimumBpt());

        // amountsIn are amounts entering the Pool, so we round up.
        _downscaleUpArray(amountsIn, scalingFactors);

        return (amountsIn, new uint256[](balances.length));
    } else {
        _upscaleArray(balances, scalingFactors);
        (uint256 bptAmountOut, uint256[] memory amountsIn) = _onJoinPool(
            poolId,
            sender,
            recipient,
            balances,
            lastChangeBlock,
            inRecoveryMode() ? 0 : protocolSwapFeePercentage, // Protocol fees are disabled while in recovery mode
            scalingFactors,
            userData
        );

        // Note we no longer use `balances` after calling `_onJoinPool`, which may mutate it.

        _mintPoolTokens(recipient, bptAmountOut);

        // amountsIn are amounts entering the Pool, so we round up.
        _downscaleUpArray(amountsIn, scalingFactors);

        // This Pool ignores the `dueProtocolFees` return value, so we simply return a zeroed-out array.
        return (amountsIn, new uint256[](balances.length));
    }
}

/**
 * @notice Vault hook for removing liquidity from a pool.
 * @dev This function can only be called from the Vault, from `exitPool`.
 */
function onExitPool(
    bytes32 poolId,
    address sender,
    address recipient,
    uint256[] memory balances,
    uint256 lastChangeBlock,
    uint256 protocolSwapFeePercentage,
    bytes memory userData
) external override onlyVault(poolId) returns (uint256[] memory, uint256[] memory) {
    uint256[] memory amountsOut;
    uint256 bptAmountIn;

    // When a user calls `exitPool`, this is the first point of entry from the Vault.
    // We first check whether this is a Recovery Mode exit - if so, we proceed using this special lightweight exit
    // mechanism which avoids computing any complex values, interacting with external contracts, etc., and generally
    // should always work, even if the Pool's mathematics or a dependency break down.
    if (userData.isRecoveryModeExitKind()) {
        // This exit kind is only available in Recovery Mode.
        _ensureInRecoveryMode();

        // Note that we don't upscale balances nor downscale amountsOut - we don't care about scaling factors during
        // a recovery mode exit.
        (bptAmountIn, amountsOut) = _doRecoveryModeExit(balances, totalSupply(), userData);
    } else {
        // Note that we only call this if we're not in a recovery mode exit.
        _beforeSwapJoinExit();

        uint256[] memory scalingFactors = _scalingFactors();
        _upscaleArray(balances, scalingFactors);

        (bptAmountIn, amountsOut) = _onExitPool(
            poolId,
            sender,
            recipient,
            balances,
            lastChangeBlock,
            inRecoveryMode() ? 0 : protocolSwapFeePercentage, // Protocol fees are disabled while in recovery mode
            scalingFactors,
            userData
        );

        // amountsOut are amounts exiting the Pool, so we round down.
        _downscaleDownArray(amountsOut, scalingFactors);
    }

    // Note we no longer use `balances` after calling `_onExitPool`, which may mutate it.

    _burnPoolTokens(sender, bptAmountIn);

    // This Pool ignores the `dueProtocolFees` return value, so we simply return a zeroed-out array.
    return (amountsOut, new uint256[](balances.length));
}

Swap 操作

在 Balancer 中，用户可以通过 swap 与 batchSwap 与 Vault 进行代币交换，而无需直接信任 Pool 合约本身，因为所有安全检查均由 Vault 完成。swap 用于执行一次单独的代币兑换，batchSwap 则可在同一笔交易中按顺序执行多次兑换，并支持 multihop 形式的链式交换。

每次 swap 都包含一个 tokenIn 与一个 tokenOut：前者由用户发送给 Pool，后者由 Pool 发给接收方。根据用户的意图不同，swap 分为两类：

• GIVEN_IN：输入数量固定，由 Pool 通过 onSwap 钩子计算输出数量
• GIVEN_OUT：输出数量固定，也是由 Pool 通过 onSwap 钩子计算输出数量

注意：在 batchSwap 里，虽然会涉及到多个 swap 操作，但是这些 swap 操作都共用一种类型，即要么这些 swap 全是 GIVEN_IN 类型，要么全是 GIVEN_OUT 类型。这个 SwapKind 是用户在调用 batchSwap 通过函数调用参数指定的，因此不会出现一笔 batchSwap 里不同 swap 的 Kind 混着计算的情况。

无论进行多少次交换，Vault 都会先完成所有中间计算，并在最后一步一次性结算代币的净变动，从而显著节省 gas，尤其是在 multihop 或跨多个 Pool 交换时。

在 multihop 进行多次代币转换时（例如先 TokenA/TokenB swap，再 TokenB/TokenC 转换），可以在后续 swap 时设置 tokenIn amount 为 0，这将使用上一步 swap 所流出的 token 数量，以简化计算逻辑，也就是不需要用户去算每一次 swap 的数量。

注意：用户有义务根据 SwapKind 来维护正确的 Swap 顺序。例如，假设有 TokenA/TokenB 和 TokenB/TokenC 两对 swap，如果用户希望

1. 用 100 TokenA 来 swap 出 TokenC，则需设置
   • SwapKind 为 GIVEN_IN
   • SwapSteps 为 100 TokenA/TokenB -> 0 TokenB/TokenC。表示将 100 Token A 用于兑换 TokenB，并将全部兑换到的 TokenB 用来兑换 TokenC （第二步 TokenB/TokenC 的 swap 操作 amount 被设置为 0 以表示使用上一步的兑换结果数额）。
2. 需要用 TokenA 来 swap 出 100 TokenC，则需要设置
   • SwapKind 为 GIVEN_OUT
   • SwapSteps 为 100 TokenB/TokenC -> 0 TokenA/TokenB。表示倒推如果需要 100 个 TokenC，则需要提供多少个 TokenB，然后把所计算出所需的 TokenB 的数量再用于倒推需要提供多少个 TokenA。

由于 batchSwap 需要支持两种 swap，因此 pool 需要分别为这两种方向的 swap 实现有利于协议的份额计算方式，其函数调用路径为：batchSwap → _swapWithPools → _swapWithPool → _processGeneralPoolSwapRequest → BaseGeneralPool.onSwap → BaseGeneralPool._swapGivenIn/_swapGivenOut → 具体各个 pool 所实现的 _swapGivenIn/_swapGivenOut hook 函数。其中 BaseGeneralPool._swapGivenIn/_swapGivenOut 这俩函数是可以被 override 的，ComposableStablePool 就是把这俩 _swapGivenIn/_swapGivenOut 函数给 override 掉用来单独特判 BPT 的 swap 逻辑。

提一嘴，对于 ComposableStablePool 这种 GeneralPool 来说，vault 在处理 swap 时所操作的 pool 余额就是我们之前已经介绍过的 _generalPoolsBalances 状态变量，可以从这里快速看出它是怎么记账的：

// pkg/vault/contracts/Swaps.sol
function _processGeneralPoolSwapRequest(IPoolSwapStructs.SwapRequest memory request, IGeneralPool pool)
    private
    returns (uint256 amountCalculated)
{
    bytes32 tokenInBalance;
    bytes32 tokenOutBalance;

    // We access both token indexes without checking existence, because we will do it manually immediately after.
    EnumerableMap.IERC20ToBytes32Map storage poolBalances = _generalPoolsBalances[request.poolId];
    uint256 indexIn = poolBalances.unchecked_indexOf(request.tokenIn);
    uint256 indexOut = poolBalances.unchecked_indexOf(request.tokenOut);

    if (indexIn == 0 || indexOut == 0) {
        // The tokens might not be registered because the Pool itself is not registered. We check this to provide a
        // more accurate revert reason.
        _ensureRegisteredPool(request.poolId);
        _revert(Errors.TOKEN_NOT_REGISTERED);
    }

    // EnumerableMap stores indices *plus one* to use the zero index as a sentinel value - because these are valid,
    // we can undo this.
    indexIn -= 1;
    indexOut -= 1;

    uint256 tokenAmount = poolBalances.length();
    uint256[] memory currentBalances = new uint256[](tokenAmount);

    request.lastChangeBlock = 0;
    for (uint256 i = 0; i < tokenAmount; i++) {
        // Because the iteration is bounded by `tokenAmount`, and no tokens are registered or deregistered here, we
        // know `i` is a valid token index and can use `unchecked_valueAt` to save storage reads.
        bytes32 balance = poolBalances.unchecked_valueAt(i);

        currentBalances[i] = balance.total();
        request.lastChangeBlock = Math.max(request.lastChangeBlock, balance.lastChangeBlock());

        if (i == indexIn) {
            tokenInBalance = balance;
        } else if (i == indexOut) {
            tokenOutBalance = balance;
        }
    }

    // Perform the swap request callback and compute the new balances for 'token in' and 'token out' after the swap
    amountCalculated = pool.onSwap(request, currentBalances, indexIn, indexOut);
    (uint256 amountIn, uint256 amountOut) = _getAmounts(request.kind, request.amount, amountCalculated);
    tokenInBalance = tokenInBalance.increaseCash(amountIn);
    tokenOutBalance = tokenOutBalance.decreaseCash(amountOut);

    // Because no tokens were registered or deregistered between now or when we retrieved the indexes for
    // 'token in' and 'token out', we can use `unchecked_setAt` to save storage reads.
    poolBalances.unchecked_setAt(indexIn, tokenInBalance);
    poolBalances.unchecked_setAt(indexOut, tokenOutBalance);
}

三、漏洞分析

我们来看一下这个漏洞是怎么触发的。首先我们需要 clone balancer/balancer-v2-monorepo 的仓库，并 checkout commit 为 88842344fb5f44d8ed6f8f944acd3be80627df87。

注意 balancer 的最新版本为 v3，因此 github 里还有一个 v3 的仓库，但漏洞出现的地方是在 v2 版本，不要弄错。以及此 commit 为截至 2025/11/20 的最新 commit，在攻击事件发生两周之后漏洞补丁仍然没有被 push 上来。

1. 漏洞代码

上一节里我们详细描述了 balancer 的交互流程，对一些操作和变量已经有了比较清晰的认知，因此理解起来这个漏洞就不再困难。这个漏洞其实很简单，当用户指定 SwapKind.GIVEN_OUT 调用 vault.batchSwap 时，如果 swap 涉及到 ComposableStablePool 且 tokenIn/tokenOut 不为 BPT，则实际会调用基类 BaseGeneralPool._swapGivenOut 来计算所需 tokenIn 的数额：

// pkg/pool-stable/contracts/ComposableStablePool.sol
/**
 * @dev Override this hook called by the base class `onSwap`, to check whether we are doing a regular swap,
 * or a swap involving BPT, which is equivalent to a single token join or exit. Since one of the Pool's
 * tokens is the preminted BPT, we need to handle swaps where BPT is involved separately.
 *
 * At this point, the balances are unscaled. The indices and balances are coming from the Vault, so they
 * refer to the full set of registered tokens (including BPT).
 *
 * If this is a swap involving BPT, call `_swapWithBpt`, which computes the amountOut using the swapFeePercentage
 * and charges protocol fees, in the same manner as single token join/exits. Otherwise, perform the default
 * processing for a regular swap.
 */
function _swapGivenOut(
    SwapRequest memory swapRequest,
    uint256[] memory registeredBalances,
    uint256 registeredIndexIn,
    uint256 registeredIndexOut,
    uint256[] memory scalingFactors
) internal virtual override returns (uint256) {
    return
        (swapRequest.tokenIn == IERC20(this) || swapRequest.tokenOut == IERC20(this))
            ? _swapWithBpt(swapRequest, registeredBalances, registeredIndexIn, registeredIndexOut, scalingFactors)
            : super._swapGivenOut( // <------ [1]
                swapRequest,
                registeredBalances,
                registeredIndexIn,
                registeredIndexOut,
                scalingFactors
            );
}

// pkg/pool-utils/contracts/BaseGeneralPool.sol
function _swapGivenOut(
    SwapRequest memory swapRequest,
    uint256[] memory balances,
    uint256 indexIn,
    uint256 indexOut,
    uint256[] memory scalingFactors
) internal virtual returns (uint256) {
    _upscaleArray(balances, scalingFactors);
    swapRequest.amount = _upscale(swapRequest.amount, scalingFactors[indexOut]); // <---- [2]

    uint256 amountIn = _onSwapGivenOut(swapRequest, balances, indexIn, indexOut);

    // amountIn tokens are entering the Pool, so we round up.
    amountIn = _downscaleUp(amountIn, scalingFactors[indexIn]);

    // Fees are added after scaling happens, to reduce the complexity of the rounding direction analysis.
    return _addSwapFeeAmount(amountIn);
}

// pkg/solidity-utils/contracts/helpers/ScalingHelpers.sol
/**
 * @dev Applies `scalingFactor` to `amount`, resulting in a larger or equal value depending on whether it needed
 * scaling or not.
 */
function _upscale(uint256 amount, uint256 scalingFactor) pure returns (uint256) {
    // Upscale rounding wouldn't necessarily always go in the same direction: in a swap for example the balance of
    // token in should be rounded up, and that of token out rounded down. This is the only place where we round in
    // the same direction for all amounts, as the impact of this rounding is expected to be minimal.
    return FixedPoint.mulDown(amount, scalingFactor); // <----- [3]
}

从代码中可以看到，哪怕是为 GivenOut 计算所需 tokenIn 的 amount ，BaseGeneralPool._swapGivenOut 依然会用 mulDown 来进行 upscale。然而在 GivenOut 的上下文下，mulDown 是偏向于用户而非偏向于协议的，因为 swapRequest.amount 此时表示用户需要多少个 tokenOut，如果 _upscale 计算出来的 token 价值被设置少了，那么可能就无法确保用户支付的价值足够多。

例如对于 TokenB/TokenC swap 此时 amount =100 表示用户需要100个 tokenC，以此来计算 pool 需要用户提供多少个 TokenB，如果 amount 被减小了，那么自然计算出来的需要从用户那边转账进 vault 的 tokenA 的数量就会跟着变小。

这里就是漏洞的实际关键代码。 不过从注释里看出开发者确信这里能造成的影响微乎其微（the impact of this rounding is expected to be minimal），那是什么导致本应该微乎其微的影响竟能产生如此大的代币窃取呢？这里需要仔细分析几个关键点。首先我们来捋一捋 scalingFactor 的计算过程。

在 ComposableStablePool 中，所计算的 scalingFactor 将会等于该 token 当前 decimal 乘以 token rate，这将导致最终计算出来的结果将为在 1e18 精度下的小数，并在 _upscale 中的 FixedPoint.mulDown 里最后一步将 1e18 精度除掉。

例如，假如 _scalingFactor0 为 1e18，tokenRate0 为 1.1e18，那么 _scalingFactors 函数计算出来的结果将为 1.1e18。
接下来以极小值作为 amount 参数调用 _upscale 函数，例如执行 _upscale(9, 1.1e18) ，则最终计算出来的结果将为 9.9e18 % 1e18 = 9，可以看到这里的计算丢失了 0.9 的精度，相当于是 10% 的精度损失。

// pkg/pool-stable/contracts/ComposableStablePoolRates.sol
/**
 * @dev Overrides scaling factor getter to compute the tokens' rates.
 */
function _scalingFactors() internal view virtual override returns (uint256[] memory) {
    // There is no need to check the arrays length since both are based on `_getTotalTokens`
    uint256 totalTokens = _getTotalTokens();
    uint256[] memory scalingFactors = new uint256[](totalTokens);

    for (uint256 i = 0; i < totalTokens; ++i) {
        scalingFactors[i] = _getScalingFactor(i).mulDown(_getTokenRate(i)); // <---
    }

    return scalingFactors;
}

但只分析到这并不够，攻击事件的核心问题并不在这。首先虽然 _upscale 的 amount 参数为 9 这种极小值时确实可以看到明显的精度丢失，但 9 这个极小值的逻辑意义就是 9 wei。要是攻击者进行一次 swap 就只窃取 1 wei 走，那这点钱可不够支付单次 swap 的 gas 费，这可能也正是 _upscale 开发者确信影响微乎其微的原因。其次，_scalingFactors 计算过程中乘以 tokenRate 的逻辑也没有问题，因为 Linear Pool 里有类似的逻辑，但 Linear Pool 却不在本次攻击范围内：

// pkg/pool-linear/contracts/LinearPool.sol
function _scalingFactor(IERC20 token) internal view virtual returns (uint256) {
    if (token == _mainToken) {
        return _scalingFactorMainToken;
    } else if (token == _wrappedToken) {
        // The wrapped token's scaling factor is not constant, but increases over time as the wrapped token
        // increases in value.
        return _scalingFactorWrappedToken.mulDown(_getWrappedTokenRate()); // <--------
    } else if (token == this) {
        return FixedPoint.ONE;
    } else {
        _revert(Errors.INVALID_TOKEN);
    }
}

那问题出在哪？？？是时候来学习一下 Stable Pool 的数学模型了。

2. Stable Pool 数学模型

这一节介绍一下 Stable Pool 的数学模型，出于学习的目的会涉及到额外的背景知识，并非所有内容都和漏洞有关。

在 swap 过程中控制流将通过调用链 BaseGeneralPool._swapGivenOut → ComposableStablePool._onSwapGivenOut → ComposableStablePool._onRegularSwap 进入到具体的 swap 份额计算逻辑：

/**
 * @dev Perform a swap between non-BPT tokens. Scaling and fee adjustments have been performed upstream, so
 * all we need to do here is calculate the price quote, depending on the direction of the swap.
 */
function _onRegularSwap(
    bool isGivenIn,
    uint256 amountGiven,
    uint256[] memory registeredBalances,
    uint256 registeredIndexIn,
    uint256 registeredIndexOut
) private view returns (uint256) {
    // Adjust indices and balances for BPT token
    uint256[] memory balances = _dropBptItem(registeredBalances);
    uint256 indexIn = _skipBptIndex(registeredIndexIn);
    uint256 indexOut = _skipBptIndex(registeredIndexOut);

    (uint256 currentAmp, ) = _getAmplificationParameter();
    uint256 invariant = StableMath._calculateInvariant(currentAmp, balances);

    if (isGivenIn) {
        return StableMath._calcOutGivenIn(currentAmp, balances, indexIn, indexOut, amountGiven, invariant);
    } else {
        return StableMath._calcInGivenOut(currentAmp, balances, indexIn, indexOut, amountGiven, invariant);
    }
}

在这里我们可以看到几个用于计算份额的函数：

• _getAmplificationParameter：获取放大系数，这是一个超参，可被管理员通过时间来平滑修改
• _calculateInvariant：计算不变量 D
• _calcOutGivenIn/_calcInGivenOut：根据之前计算出来的不变量 D 以及代币兑换方向来计算出 amountGiven 个 tokenIn 下能兑换出多少个 tokenOut

对于自动做市商 AMM 而言，它们大体上都需要遵守数学公式 $f(\mathbf{B}^{\text{prev}}; \boldsymbol{\theta})=f(\mathbf{B}^{\text{after}}; \boldsymbol{\theta})=D$，以确保代币兑换价格能够随着交易自动变动。

其中 $\mathbf{B} = (B_1, B_2,…)$ 表示多个 token 的余额（注意这里的余额是乘以 Token Rate 之后的值），$\boldsymbol{\theta}=(\theta_1,\theta_2,…)$表示超参（上面的 AmplificationParameter 就属于超参），$D$即公式的不变量，代币余额变动是通过不变量来维持价格稳定。

不同代币对的价格行为和风险特征并不相同，因此不变量函数 f 也需要因市场结构而异。对于 Stable Pool 而言，由于稳定币的兑换关系通常长期维持在固定比例，例如 1:1，自然希望该池在这一价格临界点附近拥有尽可能大的流动性深度，使得即便存在较大规模的成交，也不会引起显著价格波动，从而降低滑点并提升交易体验。但与此同时，当价格明显偏离这一固定比例时，又必须保证价格具备足够的敏感性，使得继续交易的成本迅速上升，以防止某一侧资产被过度抽干，并为套利者提供恢复价格锚定的动力。大概是这种效果：

• 价格-流动性图：可以看到价格在 1.0 附近的流动性非常多，因为 stable coin 本身价格的变动就极其轻微；而偏远价格的流动性相对较低。



• TokenA流动性-TokenB流动性图 (50/50 Stable Pool)：大概是途中橙线的效果，在0.5附近的样子接近常和线，在极端情况下的样子接近常积线。

  图是用 chatgpt 画出来的，因此此图就是大概让读者看个样子有个预期印象，不能深究数学公式。



因此，Stable Pool 所采用的不变量函数并非单纯的常和模型或常积模型，而是通过引入放大系数等超参数，在二者之间实现连续过渡：

• 在价格接近锚定区间时，其行为更接近常和曲线 x + y = k，从而提供近乎稳定的兑换比率
• 随着价格逐渐偏离该区间，不变量函数又逐步向常积曲线 x * y = k 退化，使价格曲线变得更加陡峭，强化系统在极端情况下的安全性与稳健性

_calculateInvariant 函数里维持了这样的不变量公式，其中：

$$A n^{n} S + D = A D n^{n}+\frac{D^{n+1}}{n^{n} P},\quad S = \sum_{i=1}^{n} x_i,; P = \prod_{i=1}^{n} x_i $$

• A：放大系数，超参。
• n：代币总个数。
• S：全部代币总余额之和。
• P：全部代币总余额之积。
• D：上面提到的在代币 swap 时需要维持的不变量，待计算的值。

注：这里的数学公式与漏洞利用无关，不感兴趣的读者可以跳过。

这样一来，如果：

• 池子接近平衡状态：例如所有余额满足 $x_i \approx \frac{D}{n}$ 时，有$P \approx \left(\frac{D}{n}\right)^n$，此时方程中由 A 放大的项占主导，解趋近于$D \approx S$，从而得到 $x_1 + x_2 + \cdots + x_n \approx D$。这表明在锚定价格附近，池子的行为接近常和模型，价格曲线几乎线性，滑点极小，对应高流动性与价格稳定区域。
• 某个代币余额趋近于零：例如 $x_k \to 0$，则有 $P = \prod_{i=1}^{n} x_i \to 0$，此时项$\frac{D^{n+1}}{n^{n} P}$变得极大并主导整个等式，使其近似满足$D^{n+1} \propto P$，从而在边界区域退化为类似常积模型的行为，价格随交易量急剧变化，滑点迅速增大，有效阻止单一资产被完全抽空。

上面 _calculateInvariant函数里不变量公式的自变量为各个代币的余额，因变量为不变量 D。 这里为了计算出 D，_calculateInvariant 函数使用 Newton–Raphson 迭代公式 $D_{k+1} = D_k - \frac{f(D_k)}{f’(D_k)}$ 进行最多 256 次迭代来计算出 D 值，更具体的数学细节就不展开了，感兴趣的可以找 ChatGPT 老师做更多解释。

在计算出不变量 D 之后，_calcInGivenOut 函数基于上述不变量公式进行变换，得到以下新公式 $x^2 + \left( S_{\setminus x} + \frac{D}{A \cdot n^n} - D \right) x - \frac{D^{,n+1}}{A \cdot n^{2n} \cdot P_{\setminus x}} = 0$并尝试求解变量 x。其中：

• $x$ ：表示当 tokenIn 流入之后 tokenIn 的新余额 (即$x=B_x + Amout_{in}$，而这个$Amount_{in}$就是 _calcInGivenOut 最终要求的值)。待计算的值。
• $S_{\setminus x}$：表示除了 tokenX 以外剩余其他 token 余额的总和。
• $P_{\setminus x}$：表示除了 tokenX 以外剩余其他 token 余额的总积。

这样，在计算出 tokenIn 的预期新余额之后，减去当前余额就能得到期望用户输入的 tokenIn 代币数 $Amout_{in}$。

那么 BPT 的价格该如何计算呢？ 看得出来 BPT 的价格与不变量 D 是正相关的，符合 $P_{BPT} = \frac{D}{S_{BPT}}$，其中$P_{BPT}$ 为 BPT 的价格，$S_{BPT}$ 为 BPT 的总供应量。但是要注意，虽然D名为不变量，但它并不代表是一成不变的，详见底下的代码注释，这里不再展开。

/**
 * @dev This function returns the appreciation of BPT relative to the underlying tokens, as an 18 decimal fixed
 * point number. It is simply the ratio of the invariant to the BPT supply.
 *
 * The total supply is initialized to equal the invariant, so this value starts at one. During Pool operation the
 * invariant always grows and shrinks either proportionally to the total supply (in scenarios with no price impact,
 * e.g. proportional joins), or grows faster and shrinks more slowly than it (whenever swap fees are collected or
 * the token rates increase). Therefore, the rate is a monotonically increasing function *as long as the tokens
 * in the pool do not lose value*.
 *
 * ...
 */
function getRate() external view virtual override returns (uint256) {
    // We need to compute the current invariant and actual total supply. The latter includes protocol fees that have
    // accrued but are not yet minted: in calculating these we'll actually end up fetching most of the data we need
    // for the invariant.

    (
        uint256[] memory balances,
        uint256 virtualSupply,
        uint256 protocolFeeAmount,
        uint256 lastJoinExitAmp,
        uint256 currentInvariantWithLastJoinExitAmp
    ) = _getSupplyAndFeesData();

    // Due protocol fees will be minted at the next join or exit, so we can simply add them to the current virtual
    // supply to get the actual supply.
    uint256 actualTotalSupply = virtualSupply.add(protocolFeeAmount);

    // All that's missing now is the invariant. We have the balances required to calculate it already, but still
    // need the current amplification factor.
    (uint256 currentAmp, ) = _getAmplificationParameter();

    // It turns out that the process for due protocol fee calculation involves computing the current invariant,
    // except using the amplification factor at the last join or exit. This would typically not be terribly useful,
    // but since the amplification factor only changes rarely there is high probability of its current value being
    // the same as it was in the last join or exit. If that is the case, then we can skip the costly invariant
    // computation altogether.
    uint256 currentInvariant = (currentAmp == lastJoinExitAmp)
        ? currentInvariantWithLastJoinExitAmp
        : StableMath._calculateInvariant(currentAmp, balances);

    // With the current invariant and actual total supply, we can compute the rate as a fixed-point number.
    return currentInvariant.divDown(actualTotalSupply);
}

3. 攻击流程

在第一小节里我们提到了如果传入了一个极小值给 _upscale 函数，那么其计算结果会出现较大的精度损失，但我们仍然还没搞清楚是如何通过这个几 wei 的极小值来窃取大额资金的。第二小节里我们详细了解了 Stable Pool 的不变量公式以及 BPT 价格的计算方式。

回顾一下：

1. Stable Pool 的数学模型表现为常和与常积的结合，即在锚定价格附近表现为 x + y = k，偏离锚定价格较远的位置则表现为 x * y = k。
2. 不变量D的计算是通过各个 token 的 balance 来得到的，那么不变量 D 一定和各个 token 的 balance 呈正相关。这个很容易证明，当有 LP 注入流动性的时候 token balance 增加，那么 D 也要增加以对应新增发的 BPT，反之如果 LP 撤离流动性则 token balance 降低，D 也应该随之变小。
3. BPT 价格是由不变量 D 和当前总供应量得到。在总供应量不变的情况下如果能通过漏洞把 D 降低那么就能以比正常价格低的价格来兑换 BPT。

那么攻击思路就开始逐渐清晰了：在每次 Swap 时，不变量 D 的计算都是由 token balance 来计算得到。如果能通过这种细微的 token balance 计算的精度丢失，使得不变量 D 的计算被压小（在 BPT 总供应量不变的前提下），那么攻击者就可以以较低的价格来购买 BPT，因为 BPT 价格受到不变量 D 的直接影响。

Arbitrum 上的示例攻击交易展示了攻击的全流程，我们可以发现攻击者正是通过 _upscale 函数精度损失，使得 D 的计算偏离正常值，进而影响 BPT 价格来进行攻击。具体来说，攻击的流程是这样的。

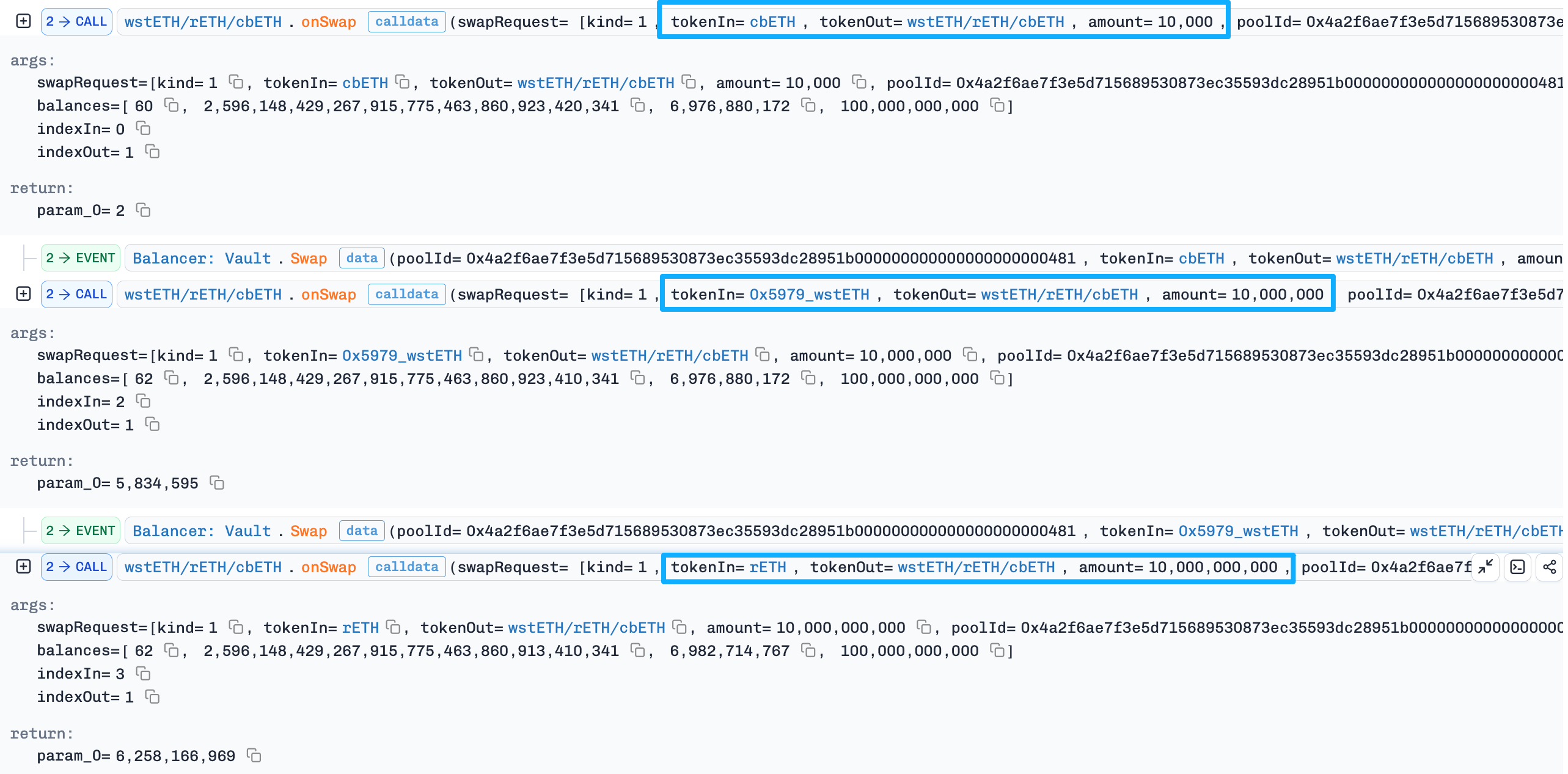

1. 流动性操纵。Balancer batchSwap 允许临时借用内部余额，因此攻击者首先借用了 Balancer 中该 Pool 的 BPT，进而使用这些 BPT 去换取底层的 rETH/cbETH/wstETH 等资产代币。使得这些本来余额为 1e18 数量级的代币，在经过大量兑换之后池子里只剩下 1e11 级别的数量：



   上图中 TokenIn 为 wstETH/rETH/cbETH 的这个其实就是该池子的 BPT（因为 BPT 的地址就是该池子的地址）。从图上可以看到从上到下每次兑换底层资产的数量级依次递减，直到最后 swap 的数量低于 100wei。从余额变动来看，最开始进行 swap 时代币的数量分别为：

   • cbETH: 385e18 (385,331,897,945,415,101,145)
   • BPT: 2.45e18 + 2^11 (2,596,148,429,267,416,263,499,288,948,276,786)
   • wstETH: 36.4e18 (36,378,350,238,858,588,950)
   • rETH: 41.3e18 (41,301,528,246,890,260,702)

   注：BPT 余额中 2^11 部分为 _PREMINTED_TOKEN_BALANCE，详见代码。

   而在完成流动性操纵之后最终的代币数量分别为：

   • cbETH: 1.00e11 (100,000,000,000)
   • BPT: 501.96e18 + 2^11 (2,596,148,429,267,915,775,463,860,923,420,341)
   • wstETH: 1.00e11 (100,000,000,000)
   • rETH: 1.00e11 (100,000,000,000)

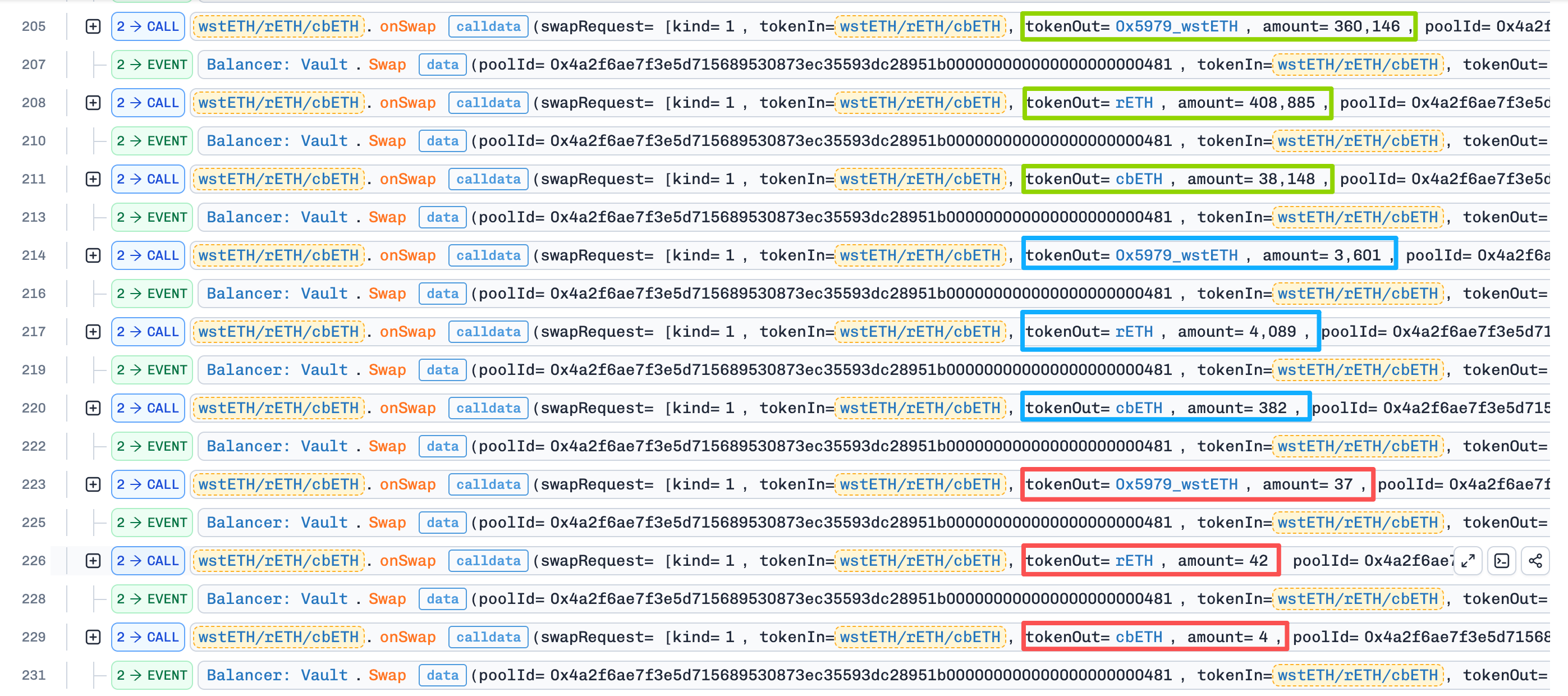

2. 通过舍入漏洞频繁压低不变量 D。这一步骤只涉及到 wstETH/cbETH 交易。攻击者通过重复多次以下 swap 步骤来达到目的：

   1. wstETH→cbETH: 这一步将耗尽 wstETH 流动性，使得流动性从较高的 1e11 降低为 9 这个临界值。
   2. wstETH→cbETH: 这一步使用精心构建的 amount = 8， 触发 upscale 的精度损失。 此时 cbETH 的 token rate 为 1.114。因此在计算不变量 D 之前，upscale 会计算 balance(8) * rate(1.114) = value(8.912) 并截断为 8。这样一来，在计算不变量 D 时，由于使用的 token balance 为截断后的 value，因此所计算出来的 D 的值将会被恶意下压。
   3. cbETH→wstETH: 在完成上一步的步骤将 D 向下压缩之后，这一步的 swap 只是将 wstETH 的流动性从 1 恢复为例如 5642 这种较高值，以准备下一次执行 a 步骤。



3. 由于已经通过多次舍入攻击把不变量 D 压的很小，因此攻击者可以以较低价格来回购 BPT，用以偿还从 Vault 的 batchSwap 里借用的内部余额。而 BPT 的前后价格差就是攻击者窃取金额的关键。下图展示了攻击者花费底层代币 cbETH/wstETH/rETH 回购 BPT 的交易过程，这里攻击者每次回购 BPT 的数量呈指数级上升，用于快速回购回最开始从 Vault 借入的用于枯竭掉 Pool 流动性所花费的 BPT。



四、参考链接

1. https://www.coinspect.com/blog/balancer-rate-manipulation-exploit/
2. https://blocksecteam.medium.com/in-depth-analysis-the-balancer-v2-exploit-9552f6442437
3. https://www.openzeppelin.com/news/understanding-the-balancer-v2-exploit
4. https://mp.weixin.qq.com/s/zywPIK08hpy-Ug6rc9Qysw
5. https://x.com/Balancer/status/1986104426667401241

I. Introduction

On November 3, 2025, attackers exploited arithmetic precision loss in Balancer pool invariant calculations, stealing $128 million from six blockchain networks in less than 30 minutes. I found this attack very interesting, but most existing online articles describe extremely limited technical details, such as precision loss in the _upscaleArray logic or adjacent one or two layers of the call chain, which is not very friendly to readers who are not yet familiar with Balancer’s specific details. Therefore, I wanted to organize all the relevant details comprehensively and take this opportunity to learn about the Balancer protocol.

II. Balancer Internal

In a nutshell: Balancer is a DeFi liquidity pool framework centered around Automated Market Makers (AMM). Does it feel like saying nothing? Don’t worry, let’s understand it step by step.

1. What is an AMM

What is an Automated Market Maker (AMM)? Let’s first understand what a market maker is. A Market Maker is a role that provides liquidity. For example, in stock trading, if there’s a huge gap between the bid and ask prices for a particular asset, it’s unfavorable for users to buy or sell, as large spreads can prevent trading at appropriate prices, leading to additional capital losses. Market makers provide liquidity by frequently placing orders in the order book to reduce the gap between buy and sell prices. If you’ve traded US stock options, you’ll particularly understand this, as options have poor liquidity due to their special nature, so most liquidity in the order book is provided by market makers.

For cryptocurrencies, similar problems arise in currency conversion. If users want to trade large amounts of their tokens, they need to find a place that can handle all their trades. The well-known Uniswap V2 is a classic example. It holds large amounts of TokenA/TokenB pairs and calculates token exchange prices by maintaining the x * y = k invariant. For example, if Uniswap’s k = 20,000 and currently holds 1000 USDC and 20 ETH, then the ETH/USDC exchange rate is 50. If the token amounts in Uniswap change to 2000 USDC and 10 ETH (note that k remains unchanged), then the ETH/USDC exchange rate becomes 200. You can see that trading venues like Uniswap automatically adjust their trading prices based on mathematical formula calculations, hence they are automated market makers. An Automated Market Maker is a role that can both automatically adjust prices based on market conditions and provide sufficient token liquidity to meet trading needs.

2. Balancer Components

The Balancer V2 documentation describes that Balancer mainly consists of two parts: Vault and Pools. Vault and Pools have a one-to-many relationship, so if users are involved in trading operations between multiple tokens, they only need to update accounting in the Vault, reducing redundant transfers and lowering gas costs.

Vault

The Vault (pkg/vault/contracts/Vault.sol) is the core of Balancer. It holds and manages all tokens in each Balancer pool and is also the entry point for most Balancer operations (swaps / joins / exits). However, it’s important to note that while the Vault holds tokens and maintains accounting, it does not perform specific fund management (for example, logic such as maintaining AMM invariants is not done in the vault). This logic is handled in Pools.

Pools

There are many different types of pools in Balancer. Here are a few simple or commonly used ones:

• Linear Pool: Uses known and stable exchange rates to allow swapping between base assets and their wrapped yield tokens. For example, in Aave, stablecoin DAI and aDAI (which represents deposits and continuously accrues interest after depositing DAI into Aave) can be efficiently swapped through a Linear Pool.
• Weight Pool: An extended version of the classic constant product market-making model (x · y = k) popularized by Uniswap V1.
• Composable Stable Pools: Liquidity pools designed for a set of assets that are highly correlated in value and expected to exchange stably at near 1:1 ratios or through known exchange rates. For example, trading between stablecoins like USDC, USDT, and DAI, which have minimal price volatility, making them very suitable for matching with low-slippage stable curves.

Regarding Composable Stable Pools, note the following:

1. This scenario differs from Linear Pool’s purpose: Composable Stable Pool handles exchanges between “multiple mutually equivalent stable assets”, while Linear Pool handles exchanges between “base assets and their yield tokens”. The two have significantly different mathematical structures and application scenarios.
2. Composable means that the pool’s BPT (Balancer Pool Token, the ERC20 share proof that liquidity providers receive after depositing assets into the pool) can itself participate as a composable asset in the construction of other pools. In other words, the pool’s LP tokens can be nested into higher-level pools like regular tokens, allowing different pools to freely combine, reference each other, and together form larger-scale, more capital-efficient liquidity structures. Although Linear Pool also registers its BPT to the Vault, these BPTs may not be used as composable assets to build other Pools.

3. Balancer Interaction Flow

Here we use the Vault + Composable Stable Pools combination as an example to introduce some of Balancer’s interaction flows.

Creating Composable Stable Pool Contracts

Let’s first look at what interaction flow occurs between the vault and pool when creating a pool, and what state variables are involved:

1. To create a new Composable Stable Pool, users can freely call the create function of the ComposableStablePoolFactory contract (pkg/pool-stable/contracts/ComposableStablePoolFactory.sol) to create a new ComposableStablePool contract.

2. The ComposableStablePool constructor will then automatically call vault.registerPool and vault.registerTokens to register this pool and related tokens into the vault. Note that the related tokens here include not only the underlying assets specified during registration but also the pool address itself (because the pool is its own BPT).

   // pkg/pool-stable/contracts/ComposableStablePool.sol
   constructor(NewPoolParams memory params)
       BasePool(
           params.vault,
           IVault.PoolSpecialization.GENERAL,
           params.name,
           params.symbol,
           _insertSorted(params.tokens, IERC20(this)), // <------
           new address[](params.tokens.length + 1), // <------
           params.swapFeePercentage,
           params.pauseWindowDuration,
           params.bufferPeriodDuration,
           params.owner
       )
       StablePoolAmplification(params.amplificationParameter)
       ComposableStablePoolStorage(_extractStorageParams(params))
       ComposableStablePoolRates(_extractRatesParams(params))
       ProtocolFeeCache(
           params.protocolFeeProvider,
           ProviderFeeIDs({ swap: ProtocolFeeType.SWAP, yield: ProtocolFeeType.YIELD, aum: ProtocolFeeType.AUM })
       )
   {
       _version = params.version;
   }

   // pkg/pool-utils/contracts/lib/PoolRegistrationLib.sol
   function _registerPool(
       IVault vault,
       IVault.PoolSpecialization specialization,
       IERC20[] memory tokens,
       address[] memory assetManagers
   ) private returns (bytes32) {
       bytes32 poolId = vault.registerPool(specialization);

       // We don't need to check that tokens and assetManagers have the same length, since the Vault already performs
       // that check.
       vault.registerTokens(poolId, tokens, assetManagers);

       return poolId;
   }

   Let’s mention PoolSpecialization here. It determines the callback interface form that the Vault uses when calling the pool for swaps, thus affecting the pool’s gas costs and supported functionality:

   • General type is the most flexible, suitable for pools that need access to all token balances and complex mathematical logic.
   • Minimal Swap Info reduces callback data while maintaining functionality, commonly used for AMMs like Weight Pool that don’t need full state.
   • Two Token further restricts the pool to contain only two assets in exchange for the lowest swap gas cost.

   Different types of pools choose appropriate specializations to balance functionality and performance based on their invariant calculation requirements and expected swap complexity. Each pool hardcodes the PoolSpecialization parameter in its constructor. In ComposableStablePool, PoolSpecialization is set to GENERAL.

3. When the Vault receives function calls from a General Pool, it performs some calculations and state updates. One is in the registerPool function, where the vault calculates a unique pool ID for this pool and stores it in the _isPoolRegistered variable:

   // pkg/vault/contracts/PoolRegistry.sol
   function registerPool(PoolSpecialization specialization)
       external
       override
       nonReentrant
       whenNotPaused
       returns (bytes32)
   {
       // Each Pool is assigned a unique ID based on an incrementing nonce. This assumes there will never be more than
       // 2**80 Pools, and the nonce will not overflow.

       bytes32 poolId = _toPoolId(msg.sender, specialization, uint80(_nextPoolNonce));

       _require(!_isPoolRegistered[poolId], Errors.INVALID_POOL_ID); // Should never happen as Pool IDs are unique.
       _isPoolRegistered[poolId] = true;

       _nextPoolNonce += 1;

       // Note that msg.sender is the pool's contract
       emit PoolRegistered(poolId, msg.sender, specialization);
       return poolId;
   }

   The other is in the registerTokens function, which sets _poolAssetManagers and _generalPoolsBalances respectively. Both use <poolId, token> as the key to store data. The former represents the administrator address that can manipulate the deposit/withdrawal/setting of balances for a token within the Pool, while the latter represents the balance state of a token in the Pool from the vault’s perspective. Therefore, we can see here that it is indeed the vault that stores the quantity information of each token in the Pool, which also facilitates swap exchanges.

   // pkg/vault/contracts/PoolTokens.sol
   function registerTokens(
       bytes32 poolId,
       IERC20[] memory tokens,
       address[] memory assetManagers
   ) external override nonReentrant whenNotPaused onlyPool(poolId) {
       InputHelpers.ensureInputLengthMatch(tokens.length, assetManagers.length);

       // Validates token addresses and assigns Asset Managers
       for (uint256 i = 0; i < tokens.length; ++i) {
           IERC20 token = tokens[i];
           _require(token != IERC20(0), Errors.INVALID_TOKEN);

           _poolAssetManagers[poolId][token] = assetManagers[i];
       }

       PoolSpecialization specialization = _getPoolSpecialization(poolId);
       if (specialization == PoolSpecialization.TWO_TOKEN) {
           _require(tokens.length == 2, Errors.TOKENS_LENGTH_MUST_BE_2);
           _registerTwoTokenPoolTokens(poolId, tokens[0], tokens[1]);
       } else if (specialization == PoolSpecialization.MINIMAL_SWAP_INFO) {
           _registerMinimalSwapInfoPoolTokens(poolId, tokens);
       } else {
           // PoolSpecialization.GENERAL
           _registerGeneralPoolTokens(poolId, tokens); // <-------
       }

       emit TokensRegistered(poolId, tokens, assetManagers);
   }

   // pkg/vault/contracts/balances/GeneralPoolsBalance.sol
   function _registerGeneralPoolTokens(bytes32 poolId, IERC20[] memory tokens) internal {
       EnumerableMap.IERC20ToBytes32Map storage poolBalances = _generalPoolsBalances[poolId];

       for (uint256 i = 0; i < tokens.length; ++i) {
           // EnumerableMaps require an explicit initial value when creating a key-value pair: we use zero, the same
           // value that is found in uninitialized storage, which corresponds to an empty balance.
           bool added = poolBalances.set(tokens[i], 0);
           _require(added, Errors.TOKEN_ALREADY_REGISTERED);
       }
   }

   At this point, we must mention the data storage format of Pool Balances in the vault. The balance information stored in _generalPoolsBalances for each pool on a token is represented as bytes32, which contains three fields:

   • cash 112 bits, representing the amount of tokens currently stored in the Vault for this Pool
   • managed 112 bits, representing the amount of tokens withdrawn from the Vault by the Pool’s Asset Manager and held externally
   • lastChangeBlock 32 bits, representing the block number of the last balance change, used to prevent sandwich attacks

   The core purpose of this design is to allow liquidity to earn higher returns while maintaining normal AMM operation. In the early Uniswap model, to maintain x·y = k, most liquidity had to be locked inside the contract, making it impossible to perform any external investments and thus unable to generate additional returns. Balancer’s architecture allows Asset Managers to withdraw some funds from the Vault for lending, investment, or other yield strategies. The Pool’s total balance still equals total = cash + managed, but the managed portion can be flexibly utilized to earn additional returns; only when events like swap, join, or exit occur will the cash amount stored in the Vault be updated. This ensures both AMM availability and improved overall capital efficiency.

Adding Liquidity

When a Liquidity Provider (LP) wants to add liquidity to a Pool, the LP can inject funds by calling the joinPool function on the vault. The vault.joinPool function will call the specific pool’s onJoinPool function (for exiting liquidity, it calls vault.exitPool and pool.onExitPool functions respectively). Below is the code for the onJoinPool / onExitPool functions. It can be seen that these two are inherited by all types of Pools, and specifically different types of Pools implement different hook functions like _onInitializePool / _onJoinPool / _onExitPool to calculate the amounts of funds flowing in and out, but BPT minting and burning happens here:

// pkg/pool-utils/contracts/BasePool.sol
/**
 * @notice Vault hook for adding liquidity to a pool (including the first time, "initializing" the pool).
 * @dev This function can only be called from the Vault, from `joinPool`.
 */
function onJoinPool(
    bytes32 poolId,
    address sender,
    address recipient,
    uint256[] memory balances,
    uint256 lastChangeBlock,
    uint256 protocolSwapFeePercentage,
    bytes memory userData
) external override onlyVault(poolId) returns (uint256[] memory, uint256[] memory) {
    _beforeSwapJoinExit();

    uint256[] memory scalingFactors = _scalingFactors();

    if (totalSupply() == 0) {
        (uint256 bptAmountOut, uint256[] memory amountsIn) = _onInitializePool(
            poolId,
            sender,
            recipient,
            scalingFactors,
            userData
        );

        // On initialization, we lock _getMinimumBpt() by minting it for the zero address. This BPT acts as a
        // minimum as it will never be burned, which reduces potential issues with rounding, and also prevents the
        // Pool from ever being fully drained.
        _require(bptAmountOut >= _getMinimumBpt(), Errors.MINIMUM_BPT);
        _mintPoolTokens(address(0), _getMinimumBpt());
        _mintPoolTokens(recipient, bptAmountOut - _getMinimumBpt());

        // amountsIn are amounts entering the Pool, so we round up.
        _downscaleUpArray(amountsIn, scalingFactors);

        return (amountsIn, new uint256[](balances.length));
    } else {
        _upscaleArray(balances, scalingFactors);
        (uint256 bptAmountOut, uint256[] memory amountsIn) = _onJoinPool(
            poolId,
            sender,
            recipient,
            balances,
            lastChangeBlock,
            inRecoveryMode() ? 0 : protocolSwapFeePercentage, // Protocol fees are disabled while in recovery mode
            scalingFactors,
            userData
        );

        // Note we no longer use `balances` after calling `_onJoinPool`, which may mutate it.

        _mintPoolTokens(recipient, bptAmountOut);

        // amountsIn are amounts entering the Pool, so we round up.
        _downscaleUpArray(amountsIn, scalingFactors);

        // This Pool ignores the `dueProtocolFees` return value, so we simply return a zeroed-out array.
        return (amountsIn, new uint256[](balances.length));
    }
}

/**
 * @notice Vault hook for removing liquidity from a pool.
 * @dev This function can only be called from the Vault, from `exitPool`.
 */
function onExitPool(
    bytes32 poolId,
    address sender,
    address recipient,
    uint256[] memory balances,
    uint256 lastChangeBlock,
    uint256 protocolSwapFeePercentage,
    bytes memory userData
) external override onlyVault(poolId) returns (uint256[] memory, uint256[] memory) {
    uint256[] memory amountsOut;
    uint256 bptAmountIn;

    // When a user calls `exitPool`, this is the first point of entry from the Vault.
    // We first check whether this is a Recovery Mode exit - if so, we proceed using this special lightweight exit
    // mechanism which avoids computing any complex values, interacting with external contracts, etc., and generally
    // should always work, even if the Pool's mathematics or a dependency break down.
    if (userData.isRecoveryModeExitKind()) {
        // This exit kind is only available in Recovery Mode.
        _ensureInRecoveryMode();

        // Note that we don't upscale balances nor downscale amountsOut - we don't care about scaling factors during
        // a recovery mode exit.
        (bptAmountIn, amountsOut) = _doRecoveryModeExit(balances, totalSupply(), userData);
    } else {
        // Note that we only call this if we're not in a recovery mode exit.
        _beforeSwapJoinExit();

        uint256[] memory scalingFactors = _scalingFactors();
        _upscaleArray(balances, scalingFactors);

        (bptAmountIn, amountsOut) = _onExitPool(
            poolId,
            sender,
            recipient,
            balances,
            lastChangeBlock,
            inRecoveryMode() ? 0 : protocolSwapFeePercentage, // Protocol fees are disabled while in recovery mode
            scalingFactors,
            userData
        );

        // amountsOut are amounts exiting the Pool, so we round down.
        _downscaleDownArray(amountsOut, scalingFactors);
    }

    // Note we no longer use `balances` after calling `_onExitPool`, which may mutate it.

    _burnPoolTokens(sender, bptAmountIn);

    // This Pool ignores the `dueProtocolFees` return value, so we simply return a zeroed-out array.
    return (amountsOut, new uint256[](balances.length));
}

Swap Operations

In Balancer, users can exchange tokens with the Vault through swap and batchSwap without directly trusting the Pool contract itself, as all security checks are performed by the Vault. swap is used to execute a single token exchange, while batchSwap can execute multiple exchanges sequentially in the same transaction and supports multihop chain exchanges.

Each swap contains a tokenIn and a tokenOut: the former is sent by the user to the Pool, and the latter is sent by the Pool to the recipient. Depending on the user’s intent, swaps are divided into two types:

• GIVEN_IN: Fixed input amount, with the output amount calculated by the Pool through the onSwap hook
• GIVEN_OUT: Fixed output amount, also calculated by the Pool through the onSwap hook

Note: In batchSwap, although multiple swap operations are involved, these swap operations all share one type, meaning either all swaps are GIVEN_IN type or all are GIVEN_OUT type. This SwapKind is specified by the user when calling batchSwap through function call parameters, so there won’t be a situation where different swaps in one batchSwap have mixed Kind calculations.

Regardless of how many exchanges are performed, the Vault will first complete all intermediate calculations and then settle the net changes of tokens in one step at the end, significantly saving gas, especially during multihop or cross-pool exchanges.

When performing multiple token conversions in multihop (for example, TokenA/TokenB swap first, then TokenB/TokenC conversion), you can set the tokenIn amount to 0 in subsequent swaps, which will use the token amount that flowed out from the previous swap, simplifying the calculation logic so users don’t need to calculate the amount for each swap.

Note: Users are obligated to maintain the correct Swap order according to SwapKind. For example, suppose there are two swap pairs: TokenA/TokenB and TokenB/TokenC. If the user wants:

1. To swap 100 TokenA for TokenC, they need to set:
   • SwapKind to GIVEN_IN
   • SwapSteps to 100 TokenA/TokenB -> 0 TokenB/TokenC. This means using 100 TokenA to exchange for TokenB, and using all the TokenB obtained from the exchange to exchange for TokenC (the amount for the second step TokenB/TokenC swap operation is set to 0 to indicate using the exchange result amount from the previous step).
2. To swap TokenA for 100 TokenC, they need to set:
   • SwapKind to GIVEN_OUT
   • SwapSteps to 100 TokenB/TokenC -> 0 TokenA/TokenB. This means working backwards: if 100 TokenC are needed, calculate how many TokenB need to be provided, then use the calculated required TokenB amount to work backwards to determine how many TokenA need to be provided.

Since batchSwap needs to support both types of swaps, pools need to implement share calculation methods favorable to the protocol for both swap directions. The function call path is: batchSwap → _swapWithPools → _swapWithPool → _processGeneralPoolSwapRequest → BaseGeneralPool.onSwap → BaseGeneralPool._swapGivenIn/_swapGivenOut → the _swapGivenIn/_swapGivenOut hook functions implemented by specific pools. Among these, the BaseGeneralPool._swapGivenIn/_swapGivenOut functions can be overridden. ComposableStablePool overrides these two _swapGivenIn/_swapGivenOut functions to specifically handle BPT swap logic.

For ComposableStablePool, which is a GeneralPool, the pool balances that the vault operates on when processing swaps are the _generalPoolsBalances state variable we introduced earlier. You can quickly see how it keeps accounts from here:

// pkg/vault/contracts/Swaps.sol
function _processGeneralPoolSwapRequest(IPoolSwapStructs.SwapRequest memory request, IGeneralPool pool)
    private
    returns (uint256 amountCalculated)
{
    bytes32 tokenInBalance;
    bytes32 tokenOutBalance;

    // We access both token indexes without checking existence, because we will do it manually immediately after.
    EnumerableMap.IERC20ToBytes32Map storage poolBalances = _generalPoolsBalances[request.poolId];
    uint256 indexIn = poolBalances.unchecked_indexOf(request.tokenIn);
    uint256 indexOut = poolBalances.unchecked_indexOf(request.tokenOut);

    if (indexIn == 0 || indexOut == 0) {
        // The tokens might not be registered because the Pool itself is not registered. We check this to provide a
        // more accurate revert reason.
        _ensureRegisteredPool(request.poolId);
        _revert(Errors.TOKEN_NOT_REGISTERED);
    }

    // EnumerableMap stores indices *plus one* to use the zero index as a sentinel value - because these are valid,
    // we can undo this.
    indexIn -= 1;
    indexOut -= 1;

    uint256 tokenAmount = poolBalances.length();
    uint256[] memory currentBalances = new uint256[](tokenAmount);

    request.lastChangeBlock = 0;
    for (uint256 i = 0; i < tokenAmount; i++) {
        // Because the iteration is bounded by `tokenAmount`, and no tokens are registered or deregistered here, we
        // know `i` is a valid token index and can use `unchecked_valueAt` to save storage reads.
        bytes32 balance = poolBalances.unchecked_valueAt(i);

        currentBalances[i] = balance.total();
        request.lastChangeBlock = Math.max(request.lastChangeBlock, balance.lastChangeBlock());

        if (i == indexIn) {
            tokenInBalance = balance;
        } else if (i == indexOut) {
            tokenOutBalance = balance;
        }
    }

    // Perform the swap request callback and compute the new balances for 'token in' and 'token out' after the swap
    amountCalculated = pool.onSwap(request, currentBalances, indexIn, indexOut);
    (uint256 amountIn, uint256 amountOut) = _getAmounts(request.kind, request.amount, amountCalculated);
    tokenInBalance = tokenInBalance.increaseCash(amountIn);
    tokenOutBalance = tokenOutBalance.decreaseCash(amountOut);

    // Because no tokens were registered or deregistered between now or when we retrieved the indexes for
    // 'token in' and 'token out', we can use `unchecked_setAt` to save storage reads.
    poolBalances.unchecked_setAt(indexIn, tokenInBalance);
    poolBalances.unchecked_setAt(indexOut, tokenOutBalance);
}

III. Vulnerability Analysis

Let’s see how this vulnerability is triggered. First, we need to clone the balancer/balancer-v2-monorepo repository and checkout commit 88842344fb5f44d8ed6f8f944acd3be80627df87.

Note: The latest version of Balancer is v3, so there is also a v3 repository on GitHub, but the vulnerability exists in the v2 version, so don’t get confused. Also, this commit is the latest commit as of 2025/11/20, and the vulnerability patch still hasn’t been pushed up two weeks after the attack incident.

1. Vulnerable Code

In the previous section, we described Balancer’s interaction flow in detail and have a relatively clear understanding of some operations and variables, so understanding this vulnerability is no longer difficult. This vulnerability is actually quite simple. When a user calls vault.batchSwap with SwapKind.GIVEN_OUT, if the swap involves ComposableStablePool and tokenIn/tokenOut is not BPT, it will actually call the base class BaseGeneralPool._swapGivenOut to calculate the required tokenIn amount:

// pkg/pool-stable/contracts/ComposableStablePool.sol
/**
 * @dev Override this hook called by the base class `onSwap`, to check whether we are doing a regular swap,
 * or a swap involving BPT, which is equivalent to a single token join or exit. Since one of the Pool's
 * tokens is the preminted BPT, we need to handle swaps where BPT is involved separately.
 *
 * At this point, the balances are unscaled. The indices and balances are coming from the Vault, so they
 * refer to the full set of registered tokens (including BPT).
 *
 * If this is a swap involving BPT, call `_swapWithBpt`, which computes the amountOut using the swapFeePercentage
 * and charges protocol fees, in the same manner as single token join/exits. Otherwise, perform the default
 * processing for a regular swap.
 */
function _swapGivenOut(
    SwapRequest memory swapRequest,
    uint256[] memory registeredBalances,
    uint256 registeredIndexIn,
    uint256 registeredIndexOut,
    uint256[] memory scalingFactors
) internal virtual override returns (uint256) {
    return
        (swapRequest.tokenIn == IERC20(this) || swapRequest.tokenOut == IERC20(this))
            ? _swapWithBpt(swapRequest, registeredBalances, registeredIndexIn, registeredIndexOut, scalingFactors)
            : super._swapGivenOut( // <------ [1]
                swapRequest,
                registeredBalances,
                registeredIndexIn,
                registeredIndexOut,
                scalingFactors
            );
}

// pkg/pool-utils/contracts/BaseGeneralPool.sol
function _swapGivenOut(
    SwapRequest memory swapRequest,
    uint256[] memory balances,
    uint256 indexIn,
    uint256 indexOut,
    uint256[] memory scalingFactors
) internal virtual returns (uint256) {
    _upscaleArray(balances, scalingFactors);
    swapRequest.amount = _upscale(swapRequest.amount, scalingFactors[indexOut]); // <---- [2]

    uint256 amountIn = _onSwapGivenOut(swapRequest, balances, indexIn, indexOut);

    // amountIn tokens are entering the Pool, so we round up.
    amountIn = _downscaleUp(amountIn, scalingFactors[indexIn]);

    // Fees are added after scaling happens, to reduce the complexity of the rounding direction analysis.
    return _addSwapFeeAmount(amountIn);
}

// pkg/solidity-utils/contracts/helpers/ScalingHelpers.sol
/**
 * @dev Applies `scalingFactor` to `amount`, resulting in a larger or equal value depending on whether it needed
 * scaling or not.
 */
function _upscale(uint256 amount, uint256 scalingFactor) pure returns (uint256) {
    // Upscale rounding wouldn't necessarily always go in the same direction: in a swap for example the balance of
    // token in should be rounded up, and that of token out rounded down. This is the only place where we round in
    // the same direction for all amounts, as the impact of this rounding is expected to be minimal.
    return FixedPoint.mulDown(amount, scalingFactor); // <----- [3]
}

From the code, we can see that even when calculating the required tokenIn amount for GivenOut, BaseGeneralPool._swapGivenOut still uses mulDown for upscaling. However, in the GivenOut context, mulDown favors users rather than the protocol, because swapRequest.amount at this point represents how many tokenOut the user needs. If the token value calculated by _upscale is set too low, it may not ensure that the user pays enough value.

For example, for a TokenB/TokenC swap where amount = 100 means the user needs 100 tokenC, this is used to calculate how many TokenB the pool needs from the user. If the amount is reduced, then naturally the calculated amount of tokenA that needs to be transferred from the user to the vault will also decrease.

This is the actual key code of the vulnerability. However, the comments show that developers believed the impact here would be minimal (the impact of this rounding is expected to be minimal). So what caused this supposedly minimal impact to result in such massive token theft? This requires careful analysis of several key points. First, let’s go through the scalingFactor calculation process.

In ComposableStablePool, the calculated scalingFactor will equal the token’s current decimal multiplied by the token rate, which will result in a value with 1e18 precision, and the 1e18 precision will be removed in the final step of FixedPoint.mulDown in _upscale.

For example, if _scalingFactor0 is 1e18 and tokenRate0 is 1.1e18, then the _scalingFactors function will calculate a result of 1.1e18.
Next, calling the _upscale function with a very small value as the amount parameter, for example executing _upscale(9, 1.1e18), the final calculated result will be 9.9e18 % 1e18 = ~~9.9~~ 9. We can see that this calculation loses 0.9 in precision, which is equivalent to a 10% precision loss.

// pkg/pool-stable/contracts/ComposableStablePoolRates.sol
/**
 * @dev Overrides scaling factor getter to compute the tokens' rates.
 */
function _scalingFactors() internal view virtual override returns (uint256[] memory) {
    // There is no need to check the arrays length since both are based on `_getTotalTokens`
    uint256 totalTokens = _getTotalTokens();
    uint256[] memory scalingFactors = new uint256[](totalTokens);

    for (uint256 i = 0; i < totalTokens; ++i) {
        scalingFactors[i] = _getScalingFactor(i).mulDown(_getTokenRate(i)); // <---
    }

    return scalingFactors;
}

However, analyzing only up to this point is not enough. The core issue of the attack incident is not here. First, although when the _upscale amount parameter is a very small value like 9, we can indeed see obvious precision loss, the logical meaning of this small value 9 is just 9 wei. If an attacker only steals 1 wei per swap, that money wouldn’t even be enough to pay for the gas fee of a single swap. This is probably why the _upscale developers believed the impact would be minimal. Second, the logic of multiplying by tokenRate in the _scalingFactors calculation process is also not problematic, because Linear Pool has similar logic, but Linear Pool is not within the scope of this attack:

// pkg/pool-linear/contracts/LinearPool.sol
function _scalingFactor(IERC20 token) internal view virtual returns (uint256) {
    if (token == _mainToken) {
        return _scalingFactorMainToken;
    } else if (token == _wrappedToken) {
        // The wrapped token's scaling factor is not constant, but increases over time as the wrapped token
        // increases in value.
        return _scalingFactorWrappedToken.mulDown(_getWrappedTokenRate()); // <--------
    } else if (token == this) {
        return FixedPoint.ONE;
    } else {
        _revert(Errors.INVALID_TOKEN);
    }
}

So where is the problem??? It’s time to learn about the Stable Pool’s mathematical model.

2. Stable Pool Mathematical Model

This section introduces the Stable Pool’s mathematical model. For learning purposes, it involves additional background knowledge, and not all content is related to the vulnerability.

During the swap process, the control flow will enter the specific swap share calculation logic through the call chain BaseGeneralPool._swapGivenOut → ComposableStablePool._onSwapGivenOut → ComposableStablePool._onRegularSwap:

/**
 * @dev Perform a swap between non-BPT tokens. Scaling and fee adjustments have been performed upstream, so
 * all we need to do here is calculate the price quote, depending on the direction of the swap.
 */
function _onRegularSwap(
    bool isGivenIn,
    uint256 amountGiven,
    uint256[] memory registeredBalances,
    uint256 registeredIndexIn,
    uint256 registeredIndexOut
) private view returns (uint256) {
    // Adjust indices and balances for BPT token
    uint256[] memory balances = _dropBptItem(registeredBalances);
    uint256 indexIn = _skipBptIndex(registeredIndexIn);
    uint256 indexOut = _skipBptIndex(registeredIndexOut);

    (uint256 currentAmp, ) = _getAmplificationParameter();
    uint256 invariant = StableMath._calculateInvariant(currentAmp, balances);

    if (isGivenIn) {
        return StableMath._calcOutGivenIn(currentAmp, balances, indexIn, indexOut, amountGiven, invariant);
    } else {
        return StableMath._calcInGivenOut(currentAmp, balances, indexIn, indexOut, amountGiven, invariant);
    }
}

Here we can see several functions used to calculate shares:

• _getAmplificationParameter: Gets the amplification factor, which is a hyperparameter that can be smoothly modified by administrators over time
• _calculateInvariant: Calculates the invariant D
• _calcOutGivenIn/_calcInGivenOut: Based on the previously calculated invariant D and the token exchange direction, calculates how many tokenOut can be exchanged for amountGiven tokenIn

For Automated Market Makers (AMM), they generally need to follow the mathematical formula $f(\mathbf{B}^{\text{prev}}; \boldsymbol{\theta})=f(\mathbf{B}^{\text{after}}; \boldsymbol{\theta})=D$ to ensure that token exchange prices can automatically adjust with trades.

Where $\mathbf{B} = (B_1, B_2,…)$ represents the balances of multiple tokens (note that the balances here are values after multiplying by Token Rate), $\boldsymbol{\theta}=(\theta_1,\theta_2,…)$ represents hyperparameters (the AmplificationParameter above is a hyperparameter), and $D$ is the invariant of the formula. Token balance changes maintain price stability through the invariant.

Different token pairs have different price behaviors and risk characteristics, so the invariant function f also needs to vary with market structure. For Stable Pools, since stablecoin exchange relationships are usually maintained at fixed ratios over the long term, such as 1:1, it’s natural to want the pool to have as much liquidity depth as possible near this price critical point, so that even large-scale trades won’t cause significant price volatility, thereby reducing slippage and improving trading experience. At the same time, when prices significantly deviate from this fixed ratio, prices must have sufficient sensitivity so that the cost of continuing to trade rises rapidly, preventing one side of assets from being over-drained and providing arbitrageurs with motivation to restore price anchoring. The effect is roughly like this:

• Price-Liquidity Chart: We can see that liquidity is very high near price 1.0, because stablecoin price movements themselves are extremely slight; liquidity at distant prices is relatively lower.



• TokenA Liquidity-TokenB Liquidity Chart (50/50 Stable Pool): Roughly the effect of the orange line in the chart, approaching a constant sum line near 0.5, and approaching a constant product line in extreme situations.

  The chart was drawn with ChatGPT, so this chart is just to give readers a general impression and expected understanding, and the mathematical formulas should not be scrutinized in detail.



Therefore, the invariant function adopted by Stable Pool is not simply a constant sum model or constant product model, but rather achieves a continuous transition between the two by introducing hyperparameters such as amplification factors:

• When prices are near the anchoring interval, its behavior is closer to the constant sum curve x + y = k, providing nearly stable exchange rates
• As prices gradually deviate from this interval, the invariant function gradually degenerates toward the constant product curve x * y = k, making the price curve steeper and strengthening the system’s safety and robustness in extreme situations

The _calculateInvariant function maintains such an invariant formula, where:

$$A n^{n} S + D = A D n^{n}+\frac{D^{n+1}}{n^{n} P},\quad S = \sum_{i=1}^{n} x_i,; P = \prod_{i=1}^{n} x_i $$

• A: Amplification factor, a hyperparameter.
• n: Total number of tokens.
• S: Sum of all token balances.
• P: Product of all token balances.
• D: The invariant mentioned above that needs to be maintained during token swaps, the value to be calculated.

Note: The mathematical formulas here are not related to the vulnerability exploitation. Readers who are not interested can skip this.

Thus, if:

• Pool is near equilibrium: For example, when all balances satisfy $x_i \approx \frac{D}{n}$, we have $P \approx \left(\frac{D}{n}\right)^n$. At this point, the term amplified by A dominates the equation, and the solution approaches $D \approx S$, thus obtaining $x_1 + x_2 + \cdots + x_n \approx D$. This indicates that near the anchoring price, the pool’s behavior is close to the constant sum model, with an almost linear price curve and minimal slippage, corresponding to high liquidity and price stability regions.
• A token balance approaches zero: For example, $x_k \to 0$, then $P = \prod_{i=1}^{n} x_i \to 0$. At this point, the term $\frac{D^{n+1}}{n^{n} P}$ becomes extremely large and dominates the entire equation, making it approximately satisfy $D^{n+1} \propto P$, thus degenerating to constant product-like behavior in boundary regions, where prices change drastically with trading volume, slippage increases rapidly, effectively preventing a single asset from being completely drained.

In the invariant formula in the _calculateInvariant function above, the independent variables are the balances of each token, and the dependent variable is the invariant D. To calculate D, the _calculateInvariant function uses the Newton–Raphson iteration formula $D_{k+1} = D_k - \frac{f(D_k)}{f’(D_k)}$ to perform up to 256 iterations to calculate the D value. More specific mathematical details won’t be expanded here; interested readers can consult ChatGPT for more explanations.

After calculating the invariant D, the _calcInGivenOut function transforms based on the above invariant formula to obtain the following new formula $x^2 + \left( S_{\setminus x} + \frac{D}{A \cdot n^n} - D \right) x - \frac{D^{,n+1}}{A \cdot n^{2n} \cdot P_{\setminus x}} = 0$ and attempts to solve for variable x. Where:

• $x$: Represents the new balance of tokenIn after tokenIn flows in (i.e., $x=B_x + Amount_{in}$, and this $Amount_{in}$ is the value that _calcInGivenOut ultimately needs to find). The value to be calculated.
• $S_{\setminus x}$: Represents the sum of balances of all other tokens except tokenX.
• $P_{\setminus x}$: Represents the product of balances of all other tokens except tokenX.

In this way, after calculating the expected new balance of tokenIn, subtracting the current balance yields the expected tokenIn amount $Amount_{in}$ that the user should input.

So how is the BPT price calculated? It can be seen that BPT price is positively correlated with the invariant D, conforming to $P_{BPT} = \frac{D}{S_{BPT}}$, where $P_{BPT}$ is the BPT price and $S_{BPT}$ is the total supply of BPT. However, note that although D is called an invariant, it doesn’t mean it’s unchanging. See the code comments below for details, which won’t be expanded here.

/**
 * @dev This function returns the appreciation of BPT relative to the underlying tokens, as an 18 decimal fixed
 * point number. It is simply the ratio of the invariant to the BPT supply.
 *
 * The total supply is initialized to equal the invariant, so this value starts at one. During Pool operation the
 * invariant always grows and shrinks either proportionally to the total supply (in scenarios with no price impact,
 * e.g. proportional joins), or grows faster and shrinks more slowly than it (whenever swap fees are collected or
 * the token rates increase). Therefore, the rate is a monotonically increasing function *as long as the tokens
 * in the pool do not lose value*.
 *
 * ...
 */
function getRate() external view virtual override returns (uint256) {
    // We need to compute the current invariant and actual total supply. The latter includes protocol fees that have
    // accrued but are not yet minted: in calculating these we'll actually end up fetching most of the data we need
    // for the invariant.

    (
        uint256[] memory balances,
        uint256 virtualSupply,
        uint256 protocolFeeAmount,
        uint256 lastJoinExitAmp,
        uint256 currentInvariantWithLastJoinExitAmp
    ) = _getSupplyAndFeesData();

    // Due protocol fees will be minted at the next join or exit, so we can simply add them to the current virtual
    // supply to get the actual supply.
    uint256 actualTotalSupply = virtualSupply.add(protocolFeeAmount);

    // All that's missing now is the invariant. We have the balances required to calculate it already, but still
    // need the current amplification factor.
    (uint256 currentAmp, ) = _getAmplificationParameter();

    // It turns out that the process for due protocol fee calculation involves computing the current invariant,
    // except using the amplification factor at the last join or exit. This would typically not be terribly useful,
    // but since the amplification factor only changes rarely there is high probability of its current value being
    // the same as it was in the last join or exit. If that is the case, then we can skip the costly invariant
    // computation altogether.
    uint256 currentInvariant = (currentAmp == lastJoinExitAmp)
        ? currentInvariantWithLastJoinExitAmp
        : StableMath._calculateInvariant(currentAmp, balances);

    // With the current invariant and actual total supply, we can compute the rate as a fixed-point number.
    return currentInvariant.divDown(actualTotalSupply);
}

3. Attack Flow

In the first subsection, we mentioned that if a very small value is passed to the _upscale function, the calculation result will have significant precision loss, but we still haven’t figured out how to steal large amounts of funds through this tiny value of a few wei. In the second subsection, we learned in detail about the Stable Pool’s invariant formula and how BPT prices are calculated.

Let’s review:

1. The Stable Pool’s mathematical model manifests as a combination of constant sum and constant product, i.e., it behaves as x + y = k near the anchoring price, and as x * y = k at positions far from the anchoring price.
2. The invariant D is calculated from each token’s balance, so the invariant D must be positively correlated with each token’s balance. This is easy to prove: when LPs inject liquidity, token balances increase, so D must also increase to correspond to newly minted BPT. Conversely, if LPs withdraw liquidity, token balances decrease, and D should also decrease accordingly.
3. BPT price is derived from the invariant D and the current total supply. If the total supply remains unchanged and D can be reduced through the vulnerability, then BPT can be exchanged at a price lower than normal.

The attack idea then becomes gradually clear: During each Swap, the invariant D is calculated from token balances. If the precision loss in this subtle token balance calculation can cause the calculated invariant D to be compressed (under the premise that BPT total supply remains unchanged), then attackers can purchase BPT at a lower price, because BPT price is directly affected by the invariant D.

The example attack transaction on Arbitrum shows the full attack flow. We can see that the attacker exploited the precision loss in the _upscale function to cause D’s calculation to deviate from normal values, thereby affecting BPT prices to carry out the attack. Specifically, the attack flow is as follows.

1. Liquidity Manipulation. Balancer batchSwap allows temporarily borrowing internal balances, so the attacker first borrowed BPT from this Pool in Balancer, then used these BPT to exchange for underlying asset tokens like rETH/cbETH/wstETH. This reduced tokens that originally had balances on the order of 1e18 to only 1e11 levels in the pool after extensive exchanges:



   In the figure above, the TokenIn labeled wstETH/rETH/cbETH is actually the BPT of this pool (because the BPT address is the pool’s address). From the figure, we can see that from top to bottom, the order of magnitude of each exchange of underlying assets decreases sequentially, until the final swap amount is below 100 wei. Looking at balance changes, the token amounts at the start of the swap were:

   • cbETH: 385e18 (385,331,897,945,415,101,145)
   • BPT: 2.45e18 + 2^11 (2,596,148,429,267,416,263,499,288,948,276,786)
   • wstETH: 36.4e18 (36,378,350,238,858,588,950)
   • rETH: 41.3e18 (41,301,528,246,890,260,702)

   Note: The 2^11 portion in the BPT balance is _PREMINTED_TOKEN_BALANCE, see code for details.

   After completing liquidity manipulation, the final token amounts were:

   • cbETH: 1.00e11 (100,000,000,000)
   • BPT: 501.96e18 + 2^11 (2,596,148,429,267,915,775,463,860,923,420,341)
   • wstETH: 1.00e11 (100,000,000,000)
   • rETH: 1.00e11 (100,000,000,000)

2. Frequently compressing the invariant D through rounding vulnerabilities. This step only involves wstETH/cbETH trading. The attacker achieves this by repeatedly performing the following swap steps:

   1. wstETH→cbETH: This step exhausts wstETH liquidity, reducing liquidity from the higher 1e11 to the critical value of 9.
   2. wstETH→cbETH: This step uses a carefully constructed amount = 8, triggering precision loss in upscale. At this point, cbETH’s token rate is 1.114. Therefore, before calculating the invariant D, upscale will calculate balance(8) * rate(1.114) = value(8.912) and truncate it to 8. In this way, when calculating the invariant D, since the token balance used is the truncated value, the calculated D value will be maliciously compressed downward.
   3. cbETH→wstETH: After completing the previous step to compress D downward, this swap step just restores wstETH liquidity from 1 to a higher value like 5642, preparing for the next execution of step a.



3. Since the invariant D has been compressed very small through multiple rounding attacks, the attacker can repurchase BPT at a lower price to repay the internal balances borrowed from the Vault’s batchSwap. The price difference of BPT before and after is the key to the amount stolen by the attacker. The figure below shows the transaction process where the attacker spends underlying tokens cbETH/wstETH/rETH to repurchase BPT. Here, the attacker’s BPT repurchase amount increases exponentially each time, used to quickly repurchase the BPT that was initially borrowed from the Vault to deplete the Pool’s liquidity.



IV. References

1. https://www.coinspect.com/blog/balancer-rate-manipulation-exploit/
2. https://blocksecteam.medium.com/in-depth-analysis-the-balancer-v2-exploit-9552f6442437
3. https://www.openzeppelin.com/news/understanding-the-balancer-v2-exploit
4. https://mp.weixin.qq.com/s/zywPIK08hpy-Ug6rc9Qysw
5. https://x.com/Balancer/status/1986104426667401241
